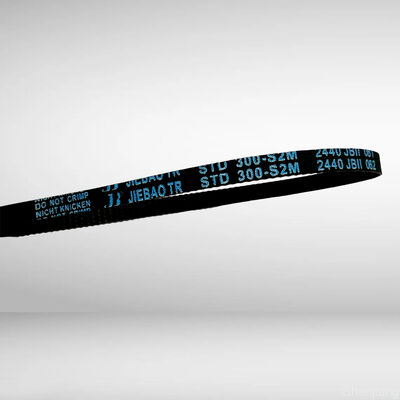

FUJITSU F56 KD03234-C930 Bill Dispenser tooth belt 10*300*S2M for ATM Parts

Place of Origin:China
Brand Name:Fujitsu
Model Number:10*300*S2M
Minimum Order Quantity:1
Price:Negotiate
Payment Terms:T/T
Supply Ability:1000 pcs/month
Product Attachments
Product Details
Highlight:

FUJITSU F56 ATM bill dispenser tooth belt

,

Fujitsu ATM parts replacement belt

,

ATM bill dispenser belt 10*300*S2M

Compatibility: Fujitsu ATM Models
Used In: Fujitsu Machine
Material: High-grade Plastic And Metal
Delivery: 2-7 Days After Payment Received
Origin Of Place: China
Shipping Mehtod: By Express/by Sea/by Air
Part Number: KD03234-C520
Productname: Fujitsu ATM Parts
Language Support: English & Franch & Spainish & Arabic
Payment: T/T,West Union,Paypal
Product Description
FUJITSU F56 KD03234-C930 Bill Dispenser tooth belt 10*300*S2M for ATM Parts

The Fujitsu F56 is a compact, high-performance cash dispenser designed for OEM, ATM, and payment kiosk applications, featuring up to 6 cassettes holding approximately 3,000 notes. It offers reliable, high-speed dispensing (2 notes/second) of multiple denominations, with flexible front, rear, or dual-access installation options.
Key Features and Specifications:

Capacity: Supports up to 6 cassettes, with standard configurations holding ~500 notes per cassette (60mm capacity).

Performance: Capable of dispensing up to 20 notes per transaction at a speed of 2 notes/second.

Flexibility: Designed for easy integration with front, rear, or dual access configurations.

Advanced Sensors: Includes bill-low sensors, denomination sensors, and a reject area capacity of up to 20 bills.

Dimensions & Power: Compact footprint of

160mm160 mm
160mm
(W) x392mm392 mm
392mm
(D) x375mm375 mm
375mm
(H), weighing approximately 11kg. Operates on DC +24V.

Interface: Uses RS232C for communication.

Application: Ideal for ATMs, self-checkout, bill payment, and ticketing kiosks.


If you are interested in this part, please feel free to contact us!

Phone:+86 13392782982
WhatsApp:+86 13392782982
Mail: ava@self-servicebank.com

Technical Specifications
Specification Details
Dimensions (W x D x H)
2-denominations
160mm x 320mm x 313mm
Cassette: 116mm x 216mm x 98mm
Weight (Without media) 8.5kg
0.7kg per Cassette
Service Access Front or Rear
Number of Cassettes Up to 6 Cassettes
Bill Count Speed 2 Notes / Second
Media Specifications
Thickness
Max: 82mm x 165mm
Min: 60mm x 120mm
0.09mm - 0.3mm
Bills per Transaction 20 Bills / Transaction
Bill Retrieval None
Shutter None
Capacities per Denomination
Accommodation
60mm
New US Note: 500 each cassette (Approx.)
Certification Standards UL, TUV certified
Reject Bill Area Capacity Max. 20 bills
Bill Low Sensor Fixed sensor
Approx. 40 bills each cassette
Interface RS232C
Electrical Power Requirements DC +24V ±10%
Max. 7A
Average 5A
Temperature
Operation
Stop State
0ºC - 40ºC
-5ºC - 50ºC
Relative Humidity
Operation
Stop State
10% - 85%
8% - 90%

FUJITSU F56 KD03234-C930 Bill Dispenser tooth belt 10*300*S2M</p>
<p><img src=

Company profile


 FUJITSU F56 KD03234-C930 Bill Dispenser tooth belt 10*300*S2M</span></p>
<p style=FUJITSU F56 KD03234-C930 Bill Dispenser tooth belt 10*300*S2M</span></p>
<p><br></p>
<p style=Guangdong Shenjiang Group is a high-tech enterprise integrating R&D, production, and sales, which specializes in ATM parts, POS and fintech machines industries over 23 years.

Working for various brands of ATM and spare parts, covering NCR, Wincor Nixdorf, Diebold Nixdorf, DeLaRue/NMD, GRG, Hyosung, Hitachi, Fujistu, OKI, Kingteller, etc). Also, we supply POS machine, Banknote counting machine, currency exchange machine, kiosk parts, 3D printers and security products such as finger vein terminals. With rich product varieties, reliable quality and reasonable cost, our products are not only popular in domestic markets, but also exported to more than 90 countries like Europe, USA, Latin America, Middle East and Southeast Asia.

Since its establishment in Guangzhou in 2002, Shenjiang has always adhered to the business philosophy of "Minimizing your downtime so you can Maximize your profits" to provide customers with high-quality products and efficient services. The company's production base is located in Shunde, Guangdong, with a total of more than 60,000 square meters of modern plant and R&D center, equipped with multiple advanced and mature design and production lines, with an annual production capacity of hundreds of thousands of units.

As one of the drafting units of the new national standard "GB16999-2010 General Technical Requirements for RMB Discriminator", Shenjiang attaches great importance to the construction of a talent team and adheres to the development path of independent innovation. At present, the company has established a professional scientific research team of more than 100 people including professors, doctors, intermediate and senior engineers, and technicians, and has carried out in-depth cooperation with many universities in product development and industrial design. The company has not only passed the ISO9001: 2008 quality management system certification, and obtained the national industrial product production license (RMB dynamic and static discriminator). It also has a number of software copyrights, invention patents, utility models, and appearance patents. The company's products have also obtained 3C, ISO9001, CE, EU ROHS, and Russian GOST certifications.
