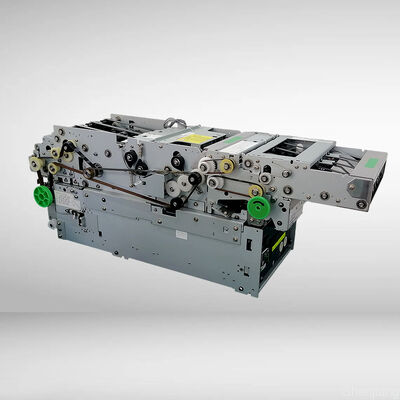

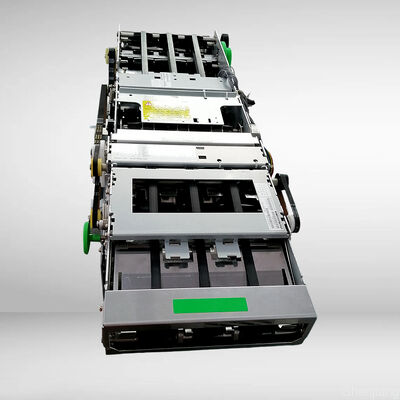

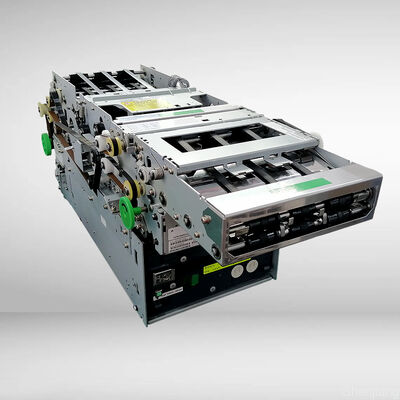

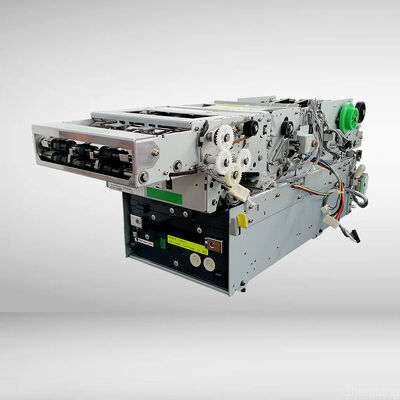

Part Name: Fujitsu F510 Dispenser Top Module Unit (also known as BDU Dispenser F510 Top Unit).
Brand: Fujitsu.
Compatibility: It is specifically designed for use in the Fujitsu F510 and G610 ATM and kiosk models.
Function: This unit is a key part of the mechanism responsible for dispensing cash or media within the machine.
Condition: These parts are typically available as new, original new, or refurbished components from various suppliers of ATM spare parts.
Material: The unit is described as a "Bank Metal" component.
If you are interested in this part, please feel free to contact us!
Phone:+86 13392782982
WhatsApp:+86 13392782982
Mail: ava@self-servicebank.com
| Specification | Details |
|---|---|
| Dimensions (W x D x H) 2-denominations |
160mm x 320mm x 313mm Cassette: 116mm x 216mm x 98mm |
| Weight (Without media) | 8.5kg 0.7kg per Cassette |
| Service Access | Front or Rear |
| Number of Cassettes | Up to 6 Cassettes |
| Bill Count Speed | 2 Notes / Second |
| Media Specifications Thickness |
Max: 82mm x 165mm Min: 60mm x 120mm 0.09mm - 0.3mm |
| Bills per Transaction | 20 Bills / Transaction |
| Bill Retrieval | None |
| Shutter | None |
| Capacities per Denomination Accommodation |
60mm New US Note: 500 each cassette (Approx.) |
| Certification Standards | UL, TUV certified |
| Reject Bill Area Capacity | Max. 20 bills |
| Bill Low Sensor | Fixed sensor Approx. 40 bills each cassette |
| Interface | RS232C |
| Electrical Power Requirements | DC +24V ±10% Max. 7A Average 5A |
| Temperature Operation Stop State |
0ºC - 40ºC -5ºC - 50ºC |
| Relative Humidity Operation Stop State |
10% - 85% 8% - 90% |
