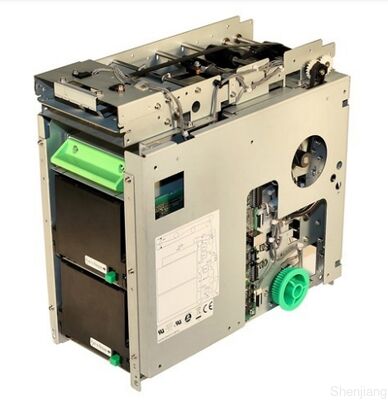

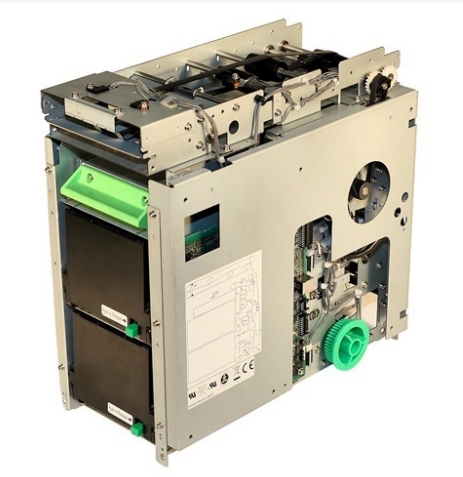

Capacity: 2-6 cassettes (500 notes per cassette, max).
Compatibility: Supports various, adjustable media sizes (paper and polymer).
Technology: USB/RS232 interface, bill low/denomination sensors, and predictive failure analysis.

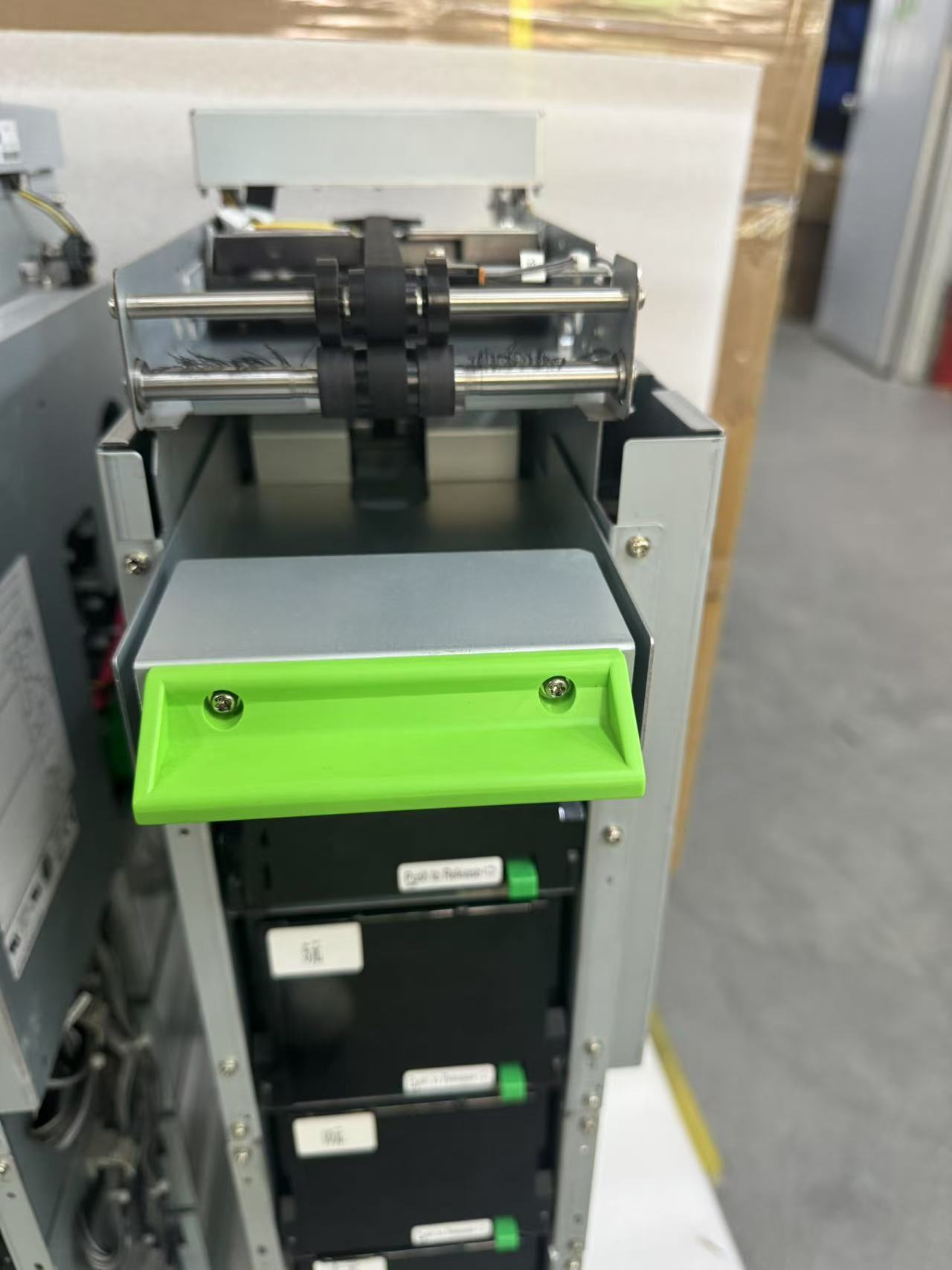

Security: Lockable, removable cash cassettes for secure, efficient replenishment.
Dimensions: Approximately
Performance: Capable of dispensing mixed new and teller-fit notes.
Width: 6.3in (160mm)
Depth: 12.6in (320mm)
Height: 12.3in (313mm)
2-Denomination capability
Capacity: Up to 500 notes per cassette
RS232C interface
Bill low sensor
Denomination sensor
Predictive failure analysis
Lockable cassette option
Firmware download capability
Single note reject function
If you are interested in this part, please feel free to contact us!
Phone:+86 13392782982
WhatsApp:+86 13392782982
Mail: ava@self-servicebank.com
| Specification | Details |
|---|---|
| Dimensions (W x D x H) 2-denominations |
160mm x 320mm x 313mm Cassette: 116mm x 216mm x 98mm |
| Weight (Without media) | 8.5kg 0.7kg per Cassette |
| Service Access | Front or Rear |
| Number of Cassettes | Up to 6 Cassettes |
| Bill Count Speed | 2 Notes / Second |
| Media Specifications Thickness |
Max: 82mm x 165mm Min: 60mm x 120mm 0.09mm - 0.3mm |
| Bills per Transaction | 20 Bills / Transaction |
| Bill Retrieval | None |
| Shutter | None |
| Capacities per Denomination Accommodation |
60mm New US Note: 500 each cassette (Approx.) |
| Certification Standards | UL, TUV certified |
| Reject Bill Area Capacity | Max. 20 bills |
| Bill Low Sensor | Fixed sensor Approx. 40 bills each cassette |
| Interface | RS232C |
| Electrical Power Requirements | DC +24V ±10% Max. 7A Average 5A |
| Temperature Operation Stop State |
0ºC - 40ºC -5ºC - 50ºC |
| Relative Humidity Operation Stop State |
10% - 85% 8% - 90% |
