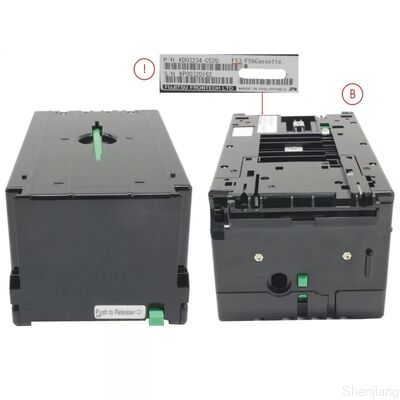

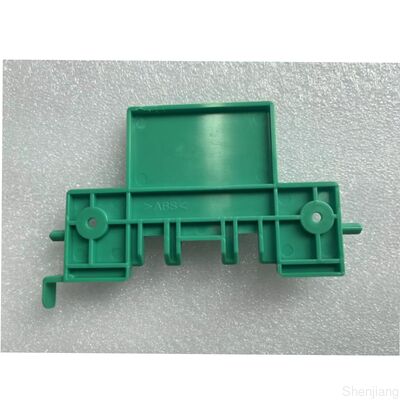

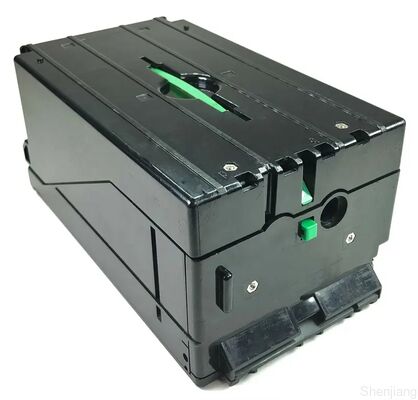

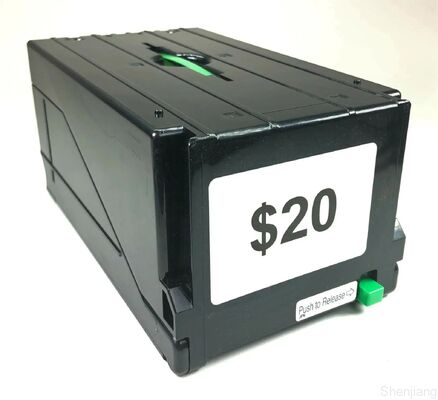

FUJITSU F53/F56 - KD03234-C520 Bill Dispenser Cash Cassette KD02881-Y525 CASSETTE FRONT PRESSURE PLATE 38038445
Minimum Order Quantity:1
Price:Negotiate
Payment Terms:T/T
Supply Ability:1000 pcs/month
Product Details
Highlight:
Fujitsu F53 F56 bill dispenser cassette
,Fujitsu ATM cash cassette pressure plate
,Fujitsu KD03234-C520 bill dispenser part
Compatibility:
Fujitsu ATM Models
Used In:
Fujitsu Machine
Material:
High-grade Plastic And Metal
Delivery:
2-7 Days After Payment Received
Origin Of Place:
China
Shipping Mehtod:
By Express/by Sea/by Air
Item No:
KD02881-Y525
Part Number:
KD03234-C520
Productname:
Fujitsu ATM Parts
Language Support:
English & Franch & Spainish & Arabic
Payment:
T/T,West Union,Paypal
Product Description
FUJITSU F53/F56 - KD03234-C520 Bill Dispenser Cash Cassette KD02881-Y525 CASSETTE FRONT PRESSURE PLATE 38038445
Compact and versatile multi-cassette media dispenser designed for OEM integration with high-end features at competitive cost.
Product Overview

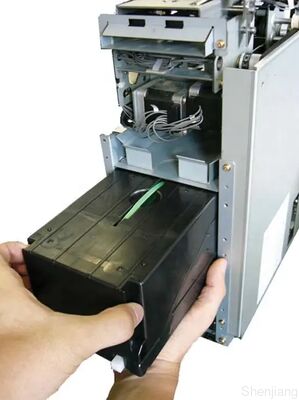

The F53 is a compact multi-cassette media dispenser engineered specifically for the OEM market. Its streamlined design offers maximum flexibility and straightforward integration into product designs.
Key Dimensions
- Width: 6.3in (160mm)
- Depth: 12.6in (320mm)
- Height: 12.3in (313mm)
- 2-Denomination capability
- Capacity: Up to 500 notes per cassette
Main Features
- RS232C interface
- Bill low sensor
- Denomination sensor
- Predictive failure analysis
- Lockable cassette option
- Firmware download capability
- Single note reject function
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions (W x D x H) 2-denominations |
160mm x 320mm x 313mm Cassette: 116mm x 216mm x 98mm |
| Weight (Without media) | 8.5kg 0.7kg per Cassette |
| Service Access | Front or Rear |
| Number of Cassettes | Up to 6 Cassettes |
| Bill Count Speed | 2 Notes / Second |
| Media Specifications Thickness |
Max: 82mm x 165mm Min: 60mm x 120mm 0.09mm - 0.3mm |
| Bills per Transaction | 20 Bills / Transaction |
| Bill Retrieval | None |
| Shutter | None |
| Capacities per Denomination Accommodation |
60mm New US Note: 500 each cassette (Approx.) |
| Certification Standards | UL, TUV certified |
| Reject Bill Area Capacity | Max. 20 bills |
| Bill Low Sensor | Fixed sensor Approx. 40 bills each cassette |
| Interface | RS232C |
| Electrical Power Requirements | DC +24V ±10% Max. 7A Average 5A |
| Temperature Operation Stop State |
0ºC - 40ºC -5ºC - 50ºC |
| Relative Humidity Operation Stop State |
10% - 85% 8% - 90% |
