Windows 10 ATM Deposit Machine
,Explosion Proof Money Deposit Machine
,CE Approved Money Deposit Machine
High Speed Note Validation And Money Anti-counterfeiting Lcd-touch Display Money Cash Deposit Machine

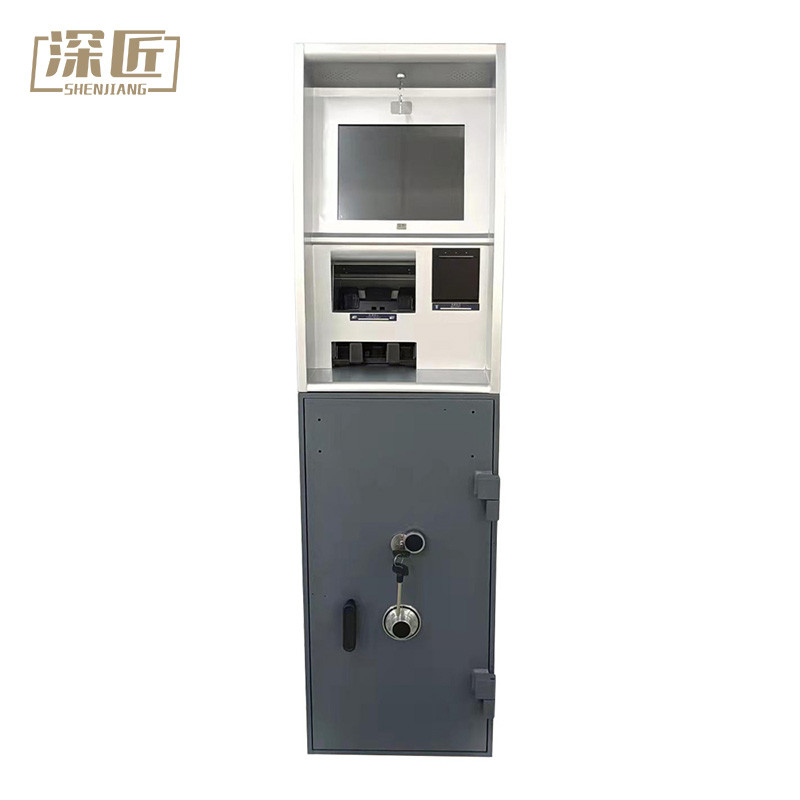

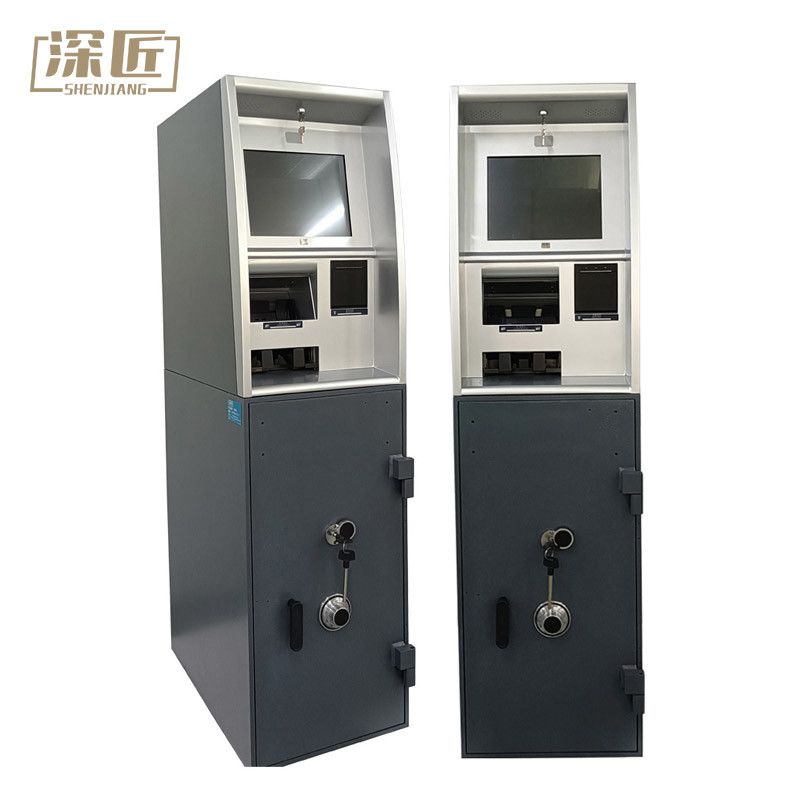

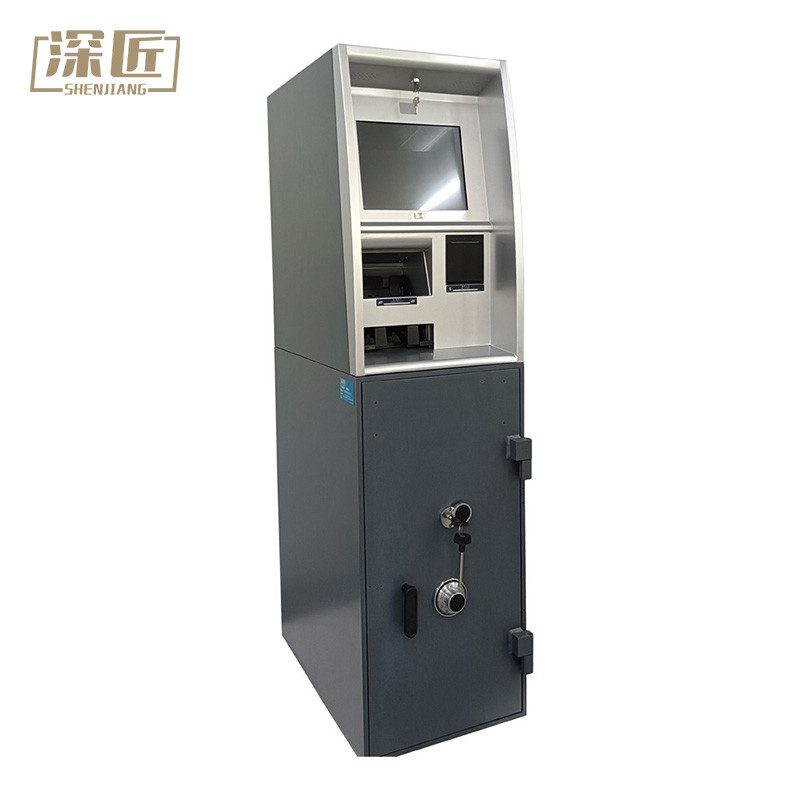

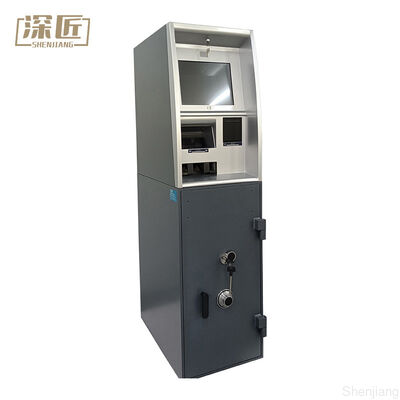

Shenjiang CDM High Speed Note Validation Lcd-Touch Display Money Cash Deposit Machine
Specifications
Controlling Unit:
Windows 10 64BIT 4GB RAM, 256 HDD
LAN, WIFI(optional), COM/USB
Banknotes Processing Unit:
Counterfeit Detection: IR, UV, CIS IMAGE, MT,
MG
Counting Speed: 800 notes per minute
Hopper Capacity: 300 notes
Reject Pocket Capacity: 50 notes
Power Supply: 100~240V AC, 50/60 Hz
Consumption: ≤120W
Dimensions: 309(W)*338(D)*227(H) mm
Net Weight: 11.6 kg
External Interface: RJ-11( RS-232), USB
Operating Temperature: 0 ~ 40℃
Humidity: 20~80 RH
Customer Interfaces:
15‘ TFT with Touch screen
Receipt Printer:
-80mm 203DPI graphical thermal printer.
-Print speed: 150mm/s
-Roll Diameter:150-254 mm
Keypad(optional):
Tactile 4*4 alphanumeric keypad PCI
compliant EPP.
Card Reader(Optional):
-Motorized card reader, Hi-Co & Lo-Co
track read
-DIP card reader (opt.)
-Contactless smart card reader/writer (opt.)
-EMV Level 1 and Level 2 compliant
2D Barcode Reader(Optional)
Contactless Card Reader(Optional)
UPS(optional)
Security
Waterproof, dustproof, explosion proof.
UL291 or CEN L safe.
PCI compliant EPP.
EMV Compliant.
Cameras and Alarm sensors.
FAQ
Q1:Are you a factory or trading company?
A1: We are established in 1985, an actual factory and manufacturer in the line of printing&package machines for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Shunde, Foshan, China, warmly welcome to visit us!
Q3: Which industries are widely used in your machine?
A3: Those are mainly used in making plastic bags and labels in the market. Examples of the stand-up pouch, zipper pouch, plastic bag for daily necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft cardboard, etc.
Q4: How about the payment term?
A4: For new customers, our payment terms are 30% T/T in advance before production, the balance of 70% should be paid before delivery.
Q5: What about your main market?
A5: Our products are sold well in 30 provinces and have a good reputation in China, also we pay attention to developing the overseas market, such as Europe, Russia, Southeast Asia, Middle, and South America, Africa, and other countries.
