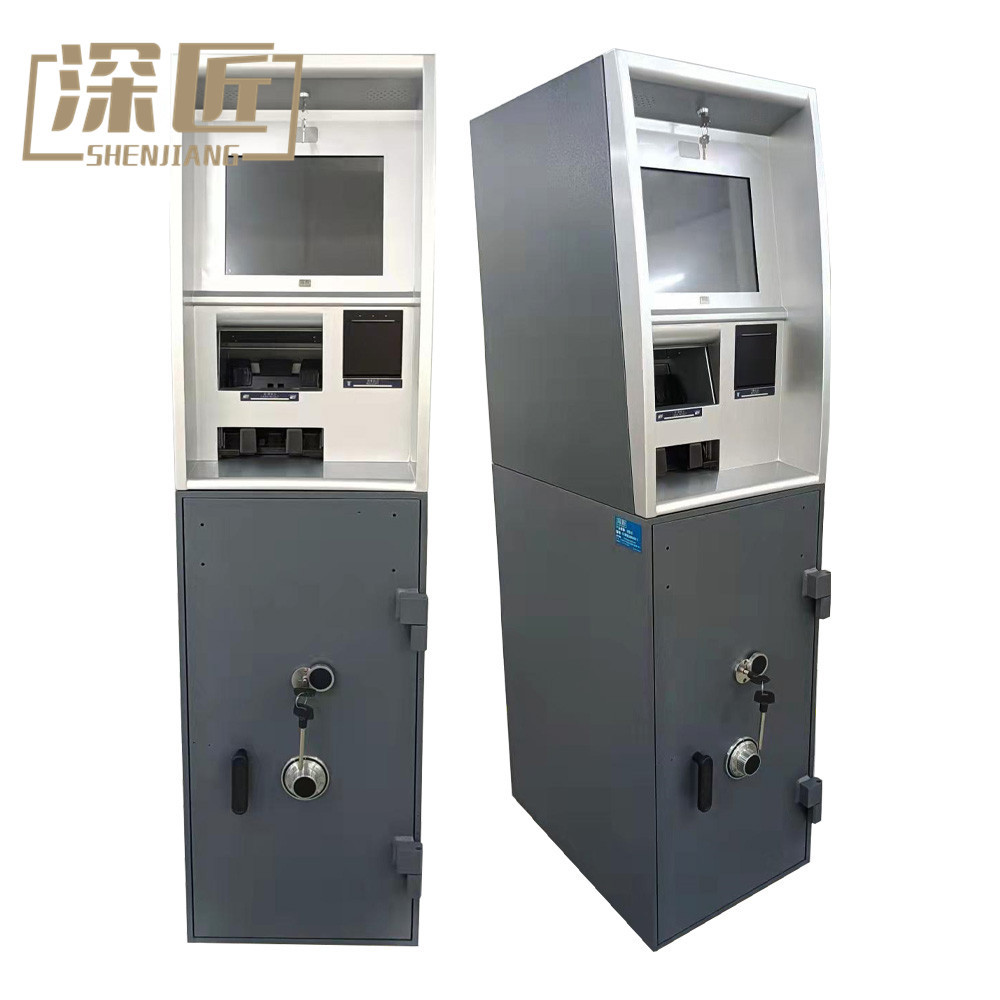

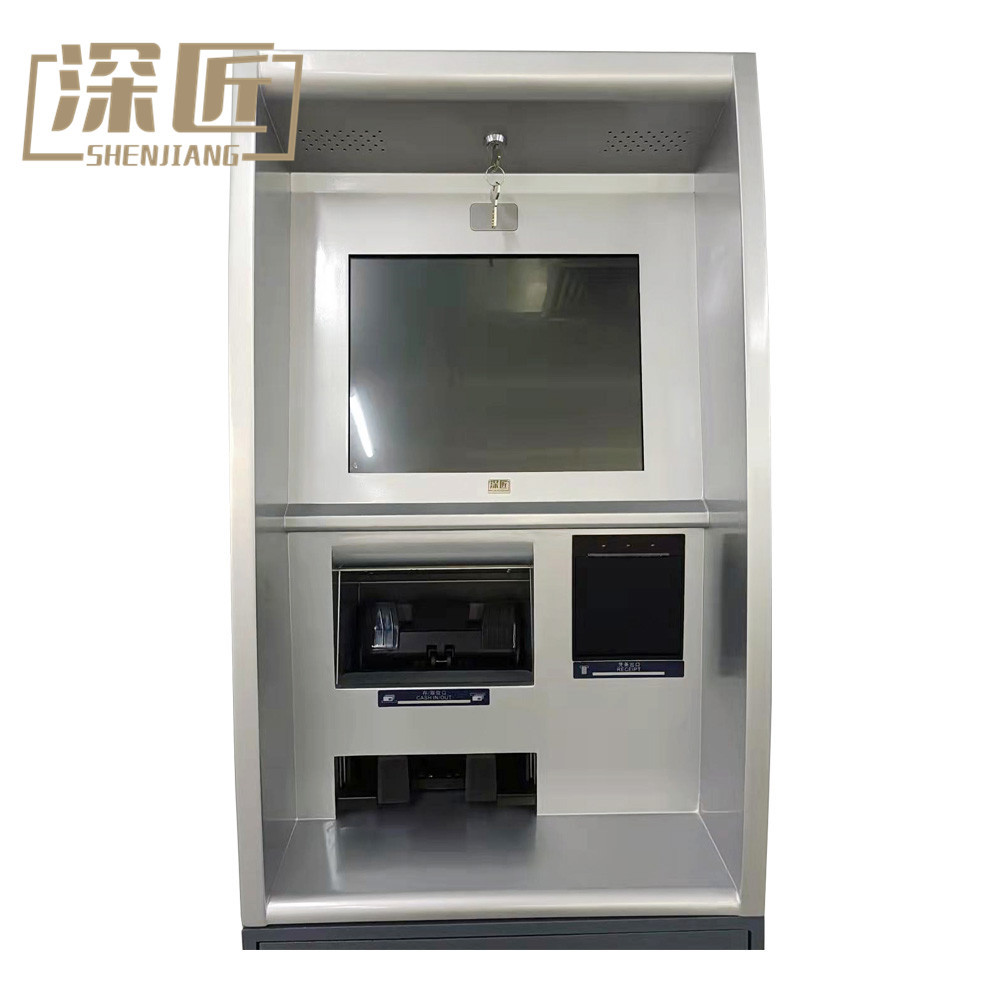

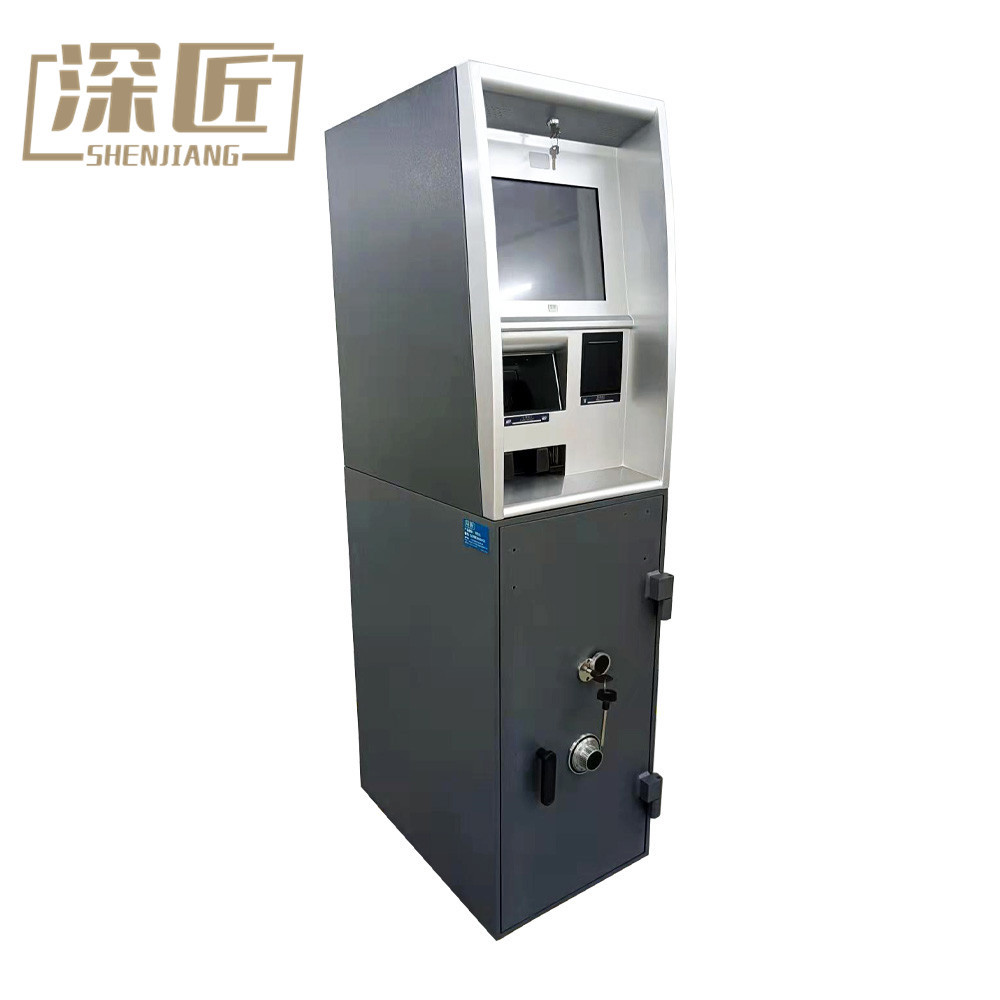

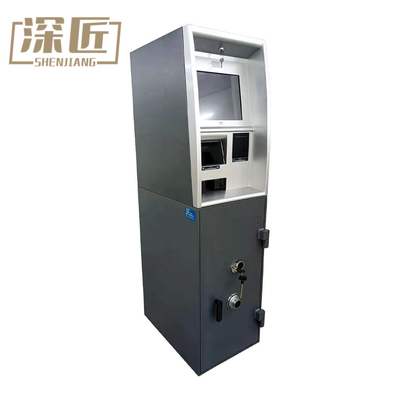

High Speed CDM Cash Deposit Machine Automatic Banknote Deposit Machine Touch Screen

Place of Origin:China
Brand Name:SHENJIANG
Certification:CE
Model Number:SJ-1023
Minimum Order Quantity:1
Price:US$6500-$7000
Supply Ability:6500 Piece/Pieces per Month
Product Details
Highlight:

Windows 10 CDM Cash Deposit Machine

,

EMV Compliant Banknote Deposit Machine

,

CE ATM Cash Deposit Machine
System: Windows 10
Support Currency: 100+ Like MYR NLG BEF IEP FRF CLP EUR LBP JOD NZD CSK
Counting Speed: 800 Notes Per Minute
Hopper Capacity: 300 Notes
Reject Pocket Capacity: 50 Notes
Display: 15" TFT With Touch Screen
Safe: UL291 Or CEN L
EPP: PCI
Design: Customized
Security: Waterproof, Dustproof, Explosion Proof
Product Description

Selling Automatic Make Unsupervised Deposits bank cash deposit atm machine Cheque Deposit Kiosk

Shenjiang CDM Cash high speed banknote deposit machine cash deposit machine



Available currencies



Currency Country  Serial Number

BRL

Brazil

 Yes

MYR

Malaysia

 Yes

IDR

Indonesia

 Yes

INR

 India  Yes

BYN

Republic of Belarus

 Yes

RUB

 Russia Yes

MXN

 Mexico Yes

SYP

 Syria Yes

AED

 Dubai Yes

VND

 Vietnam Yes



And other 100+ currency are available like CNY, USD, EUR, GBP, MYR,  NLG, BEF, IEP, FRF, CLP,  LBP, JOD, NZD, CSK, ect...





Specifications



Controlling Unit:

Windows 10 64BIT 4GB RAM, 256 HDD
LAN, WIFI(optional), COM/USB
Banknotes Processing Unit:
Counterfeit Detection: IR, UV, CIS IMAGE, MT,
MG
Counting Speed: 800 notes per minute
Hopper Capacity: 300 notes
Reject Pocket Capacity: 50 notes
Power Supply: 100~240V AC, 50/60 Hz
Consumption: ≤120W
Dimensions: 309(W)*338(D)*227(H) mm
Net Weight: 11.6 kg
External Interface: RJ-11( RS-232), USB
Operating Temperature: 0 ~ 40℃
Humidity: 20~80 RH

Customer Interfaces:

15‘ TFT with Touch screen
Receipt Printer:
-80mm 203DPI graphical thermal printer.
-Print speed: 150mm/s
-Roll Diameter:150-254 mm
Keypad(optional):
Tactile 4*4 alphanumeric keypad PCI
compliant EPP.
Card Reader(Optional):
-Motorized card reader, Hi-Co & Lo-Co
track read
-DIP card reader (opt.)
-Contactless smart card reader/writer (opt.)
-EMV Level 1 and Level 2 compliant
2D Barcode Reader(Optional)
Contactless Card Reader(Optional)
UPS(optional)

Security
Waterproof, dustproof, explosion proof.
UL291 or CEN L safe.
PCI compliant EPP.
EMV Compliant.
Cameras and Alarm sensors.

Operating Environment:
Operating Temperature: 0 ~ 40℃
Relative Humidity: 20~80 RH

High Speed CDM Cash Deposit Machine Automatic Banknote Deposit Machine Touch Screen 0High Speed CDM Cash Deposit Machine Automatic Banknote Deposit Machine Touch Screen 1High Speed CDM Cash Deposit Machine Automatic Banknote Deposit Machine Touch Screen 2High Speed CDM Cash Deposit Machine Automatic Banknote Deposit Machine Touch Screen 3

High Speed CDM Cash Deposit Machine Automatic Banknote Deposit Machine Touch Screen 4





FAQ

Q1:Are you a factory or trading company?
A1: We are established in 1985, an actual factory and manufacturer in the line of printing&package machines for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Shunde, Foshan, China,  warmly welcome to visit us!
Q3: Which industries are widely used in your machine?
A3: Those are mainly used in making plastic bags and labels in the market. Examples of the stand-up pouch, zipper pouch, plastic bag for daily necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft cardboard, etc.
Q4: How about the payment term?
A4: For new customers, our payment terms are 30% T/T in advance before production, the balance of 70% should be paid before delivery.
Q5: What about your main market?
A5: Our products are sold well in 30 provinces and have a good reputation in China, also we pay attention to developing the overseas market, such as Europe, Russia, Southeast Asia, Middle, and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certifications.
Q7:What about the warranty and do the engineers available overseas?
A7: One-year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix it for you.
Q8:What about the service after the sale?
A8: Once you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to solve the problem.
